High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine

Grundlegende Informationen
Herkunftsort: Provinz Shandong, China
Markenname: SH
Zertifizierung: ISO9001,CE
Modellnummer: SHJM350, SHJM650, SHJM800
Min Bestellmenge: 1 Set
Preis: US $7,500-13,950 / Set
Verpackung Informationen: Eisenrahmenverpackungs- oder -behälterladen
Lieferzeit: innerhalb von 15 Tagen
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Jahr
Detailinformationen
Name: Präzision resaw Bandsäge Zustand: Neu
Funktion: Holz-/Brett -Präzisionsschneide Hauptmotorleistung: 15kw, 18.5kw, 22kw, 30kw
Fütterungsmotor: 1,5 kW Durchmesser der Säge: 700 mm
Max. Sägebreite: 1000 mm Max. Verarbeitungshöhe: 110 mm
Fütterungsgeschwindigkeit: Inverter, Geschwindigkeit justierbar Garantie:: 1 Jahr
Nachverkaufsservice erbracht: On-line-Unterstützung, technische Videounterstützung, beauftragend und bildet aus
Hervorheben:

horizontal band saw machine

,

wood cutting band resaw

,

industrial horizontal band saw


Produkt-Beschreibung

Precision Resaw Bandsaw

Unlock Maximum Yield and Precision with an Industrial Precision Resaw Bandsaw

Beyond basic cutting, a precision resaw is an investment in productivity. Its core benefit lies in transforming challenging tasks—like salvaging expensive slabs or producing delicate veneers—into streamlined, repeatable processes. This is the definitive solution for professionals who require dependable performance day in and day out.

Key Benefits and Features at a Glance

  • High-Output Efficiency with Power Feeding

    • Benefit: Dramatically increase production rates and achieve a perfect surface finish by automating the feed process. A power feeder provides a consistent, steady feed rate, which is crucial for both operator safety and optimal precision resawing.

    • Features Behind the Benefit: Driven by a high-torque motor and often paired with a carbide-tipped blade, the saw maintains consistent speed and power through the thickest materials.

  • Maximize Material Value and Versatility

    • Benefit: Recover the highest possible value from expensive lumber by efficiently resawing slabs and cants into thinner, usable boards. The wide resaw capacity opens up opportunities for diverse projects.

    • Typical Applications: Ideal for producing lumber, custom veneers, wood siding, and salvaging valuable material from live-edge slabs.

Technical Specifications:

Model SHJM-400 SHJM-650 SHJM-800 SHJM-1000
Saw wheel diameter 600MM 700MM 700MM 700MM
Max. processing width 400MM 650MM 800MM 1000MM
Max. processing height 110MM 110MM 110MM 110MM
Sawn min.thickness 2MM 2MM 2MM 2MM
Feeding speed 0.1-30m/min 0.1-30m/min 0.1-30m/min 0.1-30m/min
Main motor power 15KW 18.5KW 22KW 30KW
Feeding motor power 0.75KW 0.75KW 1.5KW 1.5KW
Sawn sizes setting CNC digital CNC digital CNC digital CNC digital
Machine weight 1850kgs 2550kgs 2750kgs 3150kgs



Detailed Images

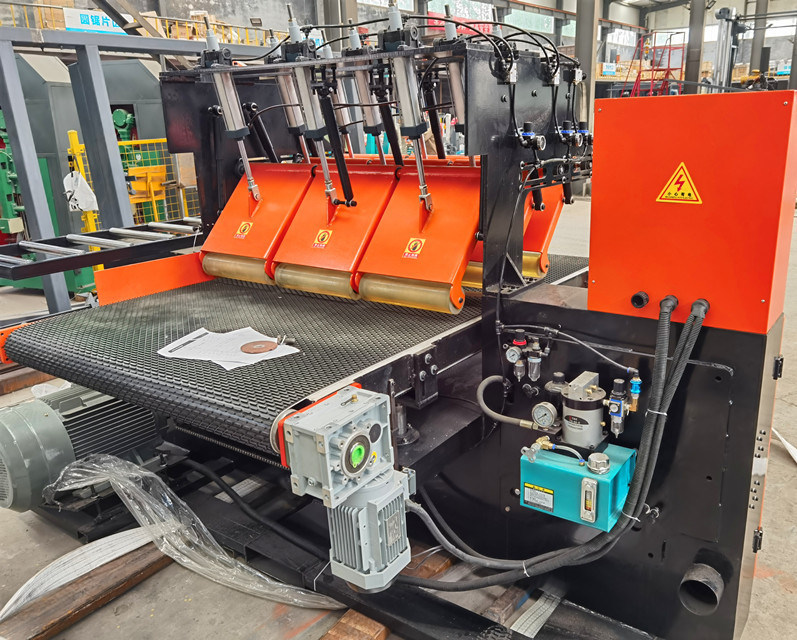

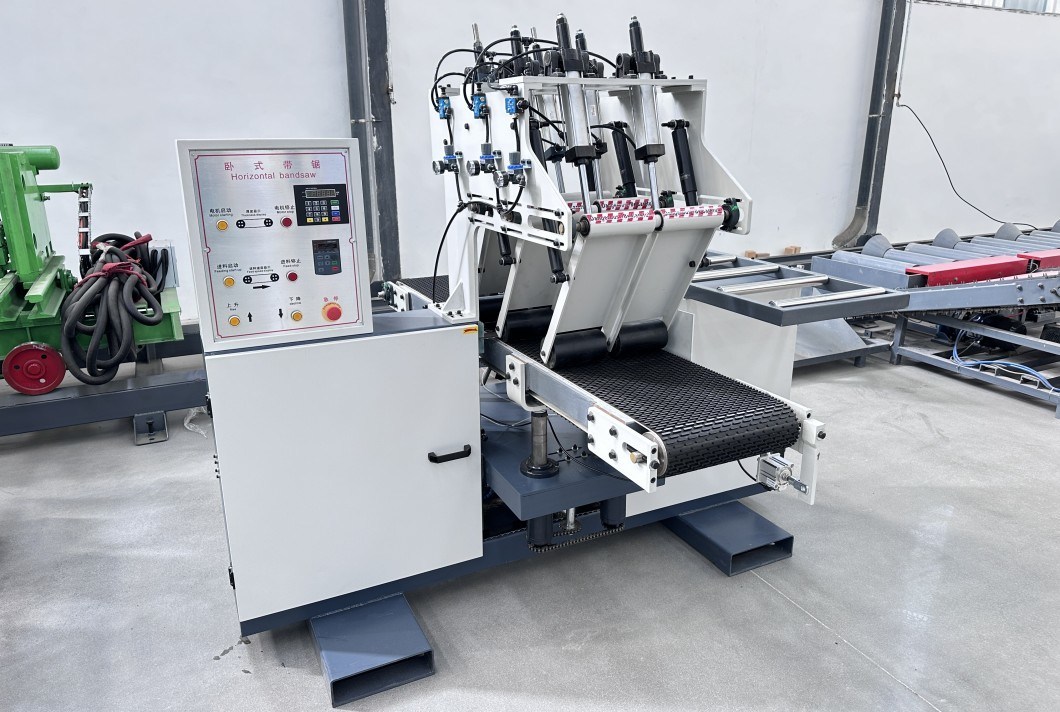

High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine 0High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine 1

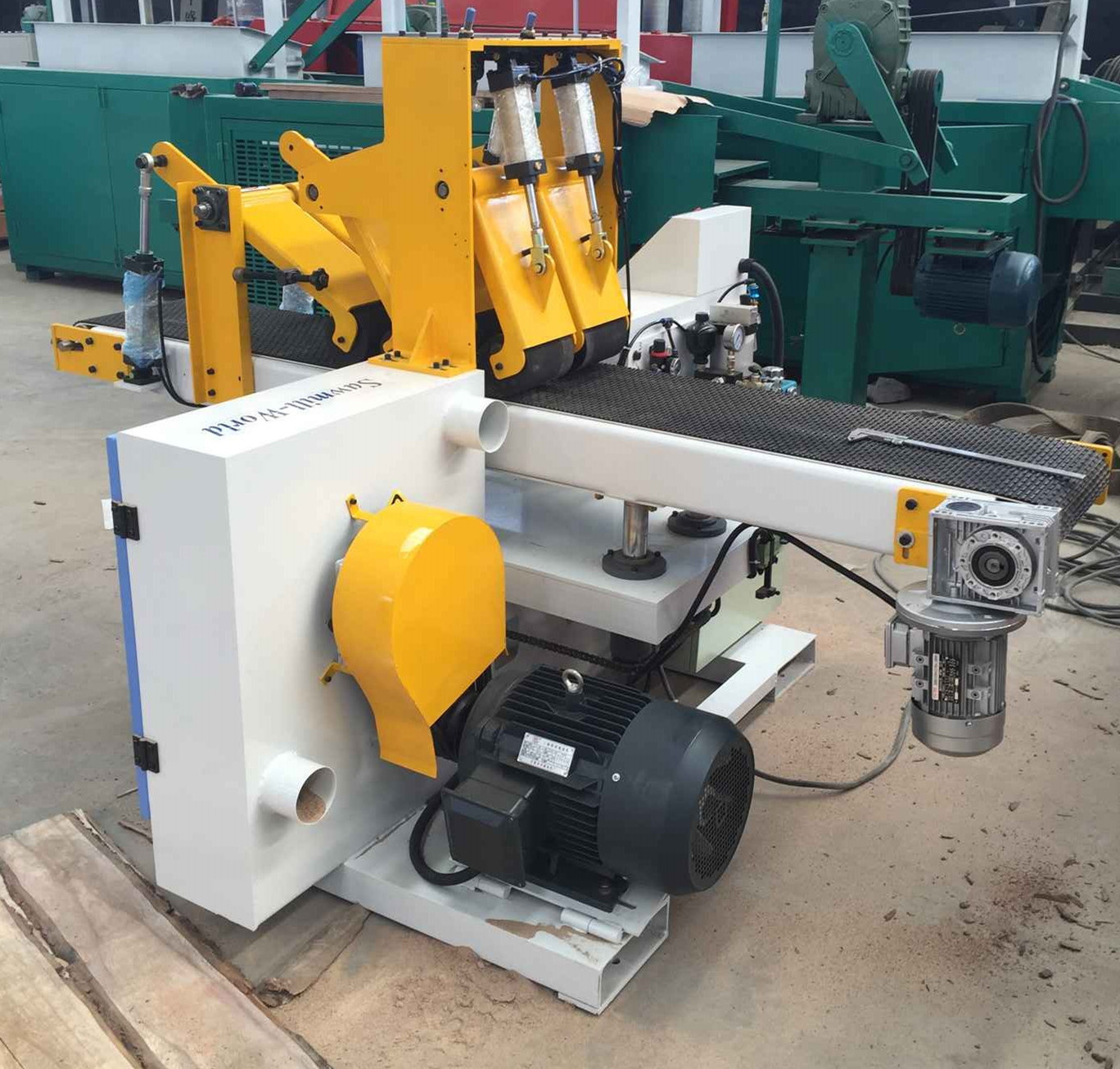

High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine 2

Related Saw Machines

Precision Slice Horizontal Band Sawmill

Horizontal Resaw Band Saw Mills
Model SH350 SH650 SH800
Saw Wheel Diameter 710 mm 710 mm 710 mm
Maximum Cutting Width 350 mm 650 mm 800 mm
Maximum working Wood Height 200 mm 220 mm 220 mm

Max Sawing Height



100 mm 110 mm 110 mm

Min Sawing Thickness



2 mm 2mm 2mm
Feeding speed Variable Frequency Adjusted Speed
Main Electric Motor Power 15 KW 18.5 KW 18.5KW
Up/down motor 0.37kw 0.37kw 0.37kw
Feeding motor 1.1kw 1.1kw 1.5kw
Machine Weight 1000 KG 1200 KG 1400 KG

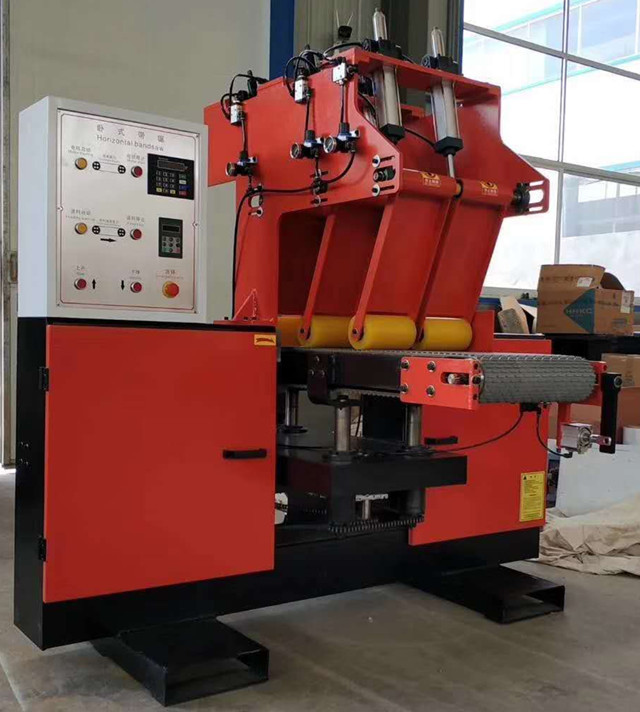

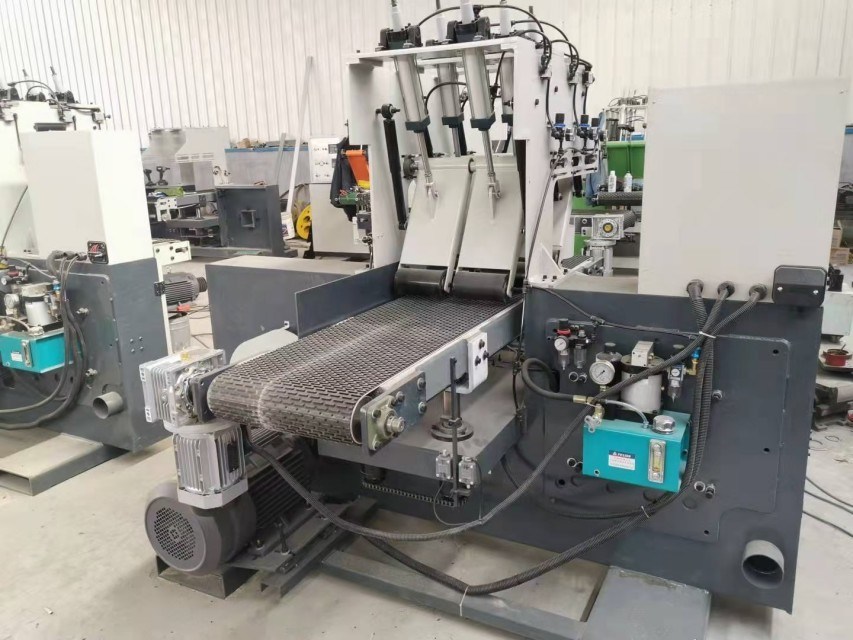

High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine 3High Precision Wood Cutting Horizontal Band Resaw Horizontal Band Saw Machine 4





Built to Last, Backed by Support

We stand behind the durability of our precision resaw bandsaws. Each machine is backed by a comprehensive warranty and supported by a dedicated service team, ensuring you have the parts and expertise you need to keep your production running smoothly.

Ready to transform your woodworking productivity? Contact our experts today to discuss your specific needs and find the perfect precision resaw bandsaw for your shop.
