Wood Cutting Band Sawmill Horizontal Precision Band ReSaw Bottom Cutting Saw Machine

Grundlegende Informationen
Herkunftsort: Provinz Shandong, China
Markenname: SH
Zertifizierung: ISO9001,CE
Modellnummer: SHJM-400, SHJM-650, SHJM-800, SHJM-1000 usw.
Min Bestellmenge: 1 Set
Preis: US $5,300-13,950 / Set
Verpackung Informationen: Eisenrahmenverpackungs- oder -behälterladen
Lieferzeit: innerhalb von 15 Tagen
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Jahr
Detailinformationen
Name: Präzision resaw Bandsäge Zustand: Neu
Typ: Band Resaw Hauptmotorleistung: 15kw, 18.5kw, 22kw, 30kw
Fütterungsmotor: 0,75 kW, 1,5 kW Durchmesser der Säge: 600mm, 700mm
Max. Sägebreite: 1000 mm Max. Verarbeitungshöhe: 110 mm
Fütterungsgeschwindigkeit: Inverter, Geschwindigkeit justierbar Garantie:: 1 Jahr
Nachverkaufsservice erbracht: On-line-Unterstützung, technische Videounterstützung, beauftragend und bildet aus
Hervorheben:

horizontal band sawmill for wood cutting

,

precision band resaw machine

,

industrial bottom cutting sawmill


Produkt-Beschreibung

Precision Resaw Bandsaw

Unlock Maximum Yield and Precision with an Industrial Precision Resaw Bandsaw

For high-volume woodworking operations, achieving flawless, consistent cuts isn't just a goal—it's a necessity for profitability. An industrial precision resaw bandsaw is engineered to deliver exactly that: unparalleled accuracy and efficiency in every cut. This machine transforms raw lumber into high-value products by maximizing yield and ensuring a superior finish, directly boosting your bottom line through reduced waste and increased output.

Key Benefits and Features at a Glance

  • Unmatched Cutting Accuracy & Consistency

    • Benefit: Produce glue-ready laminates and perfectly dimensioned lumber with exceptional smoothness, minimizing the need for secondary planing or sanding.

    • Features Behind the Benefit: A sophisticated fence system ensures precise workpiece positioning, while computer-balanced wheels and ultra-rigid construction eliminate vibration for dead-straight cuts.

  • Industrial-Grade Construction for Demanding Environments

    • Benefit: Experience rock-solid stability and durability that stands up to the rigors of continuous production, ensuring long-term reliability and minimal downtime.

    • Features Behind the Benefit: Built with heavy-duty components like solid cast-iron wheels, robust trunnions, and a large, stable cast-iron table that forms an unshakable foundation.

Technical Specifications:

Model SHJM-400 SHJM-650 SHJM-800 SHJM-1000
Saw wheel diameter 600MM 700MM 700MM 700MM
Max. processing width 400MM 650MM 800MM 1000MM
Max. processing height 110MM 110MM 110MM 110MM
Sawn min.thickness 2MM 2MM 2MM 2MM
Feeding speed 0.1-30m/min 0.1-30m/min 0.1-30m/min 0.1-30m/min
Main motor power 15KW 18.5KW 22KW 30KW
Feeding motor power 0.75KW 0.75KW 1.5KW 1.5KW
Sawn sizes setting CNC digital CNC digital CNC digital CNC digital
Machine weight 1850kgs 2550kgs 2750kgs 3150kgs

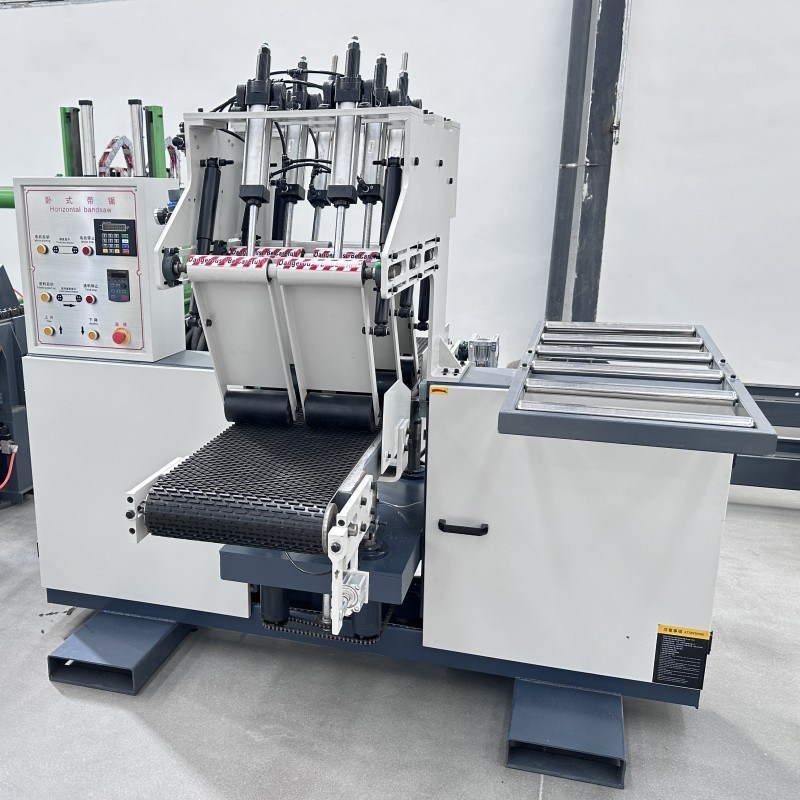

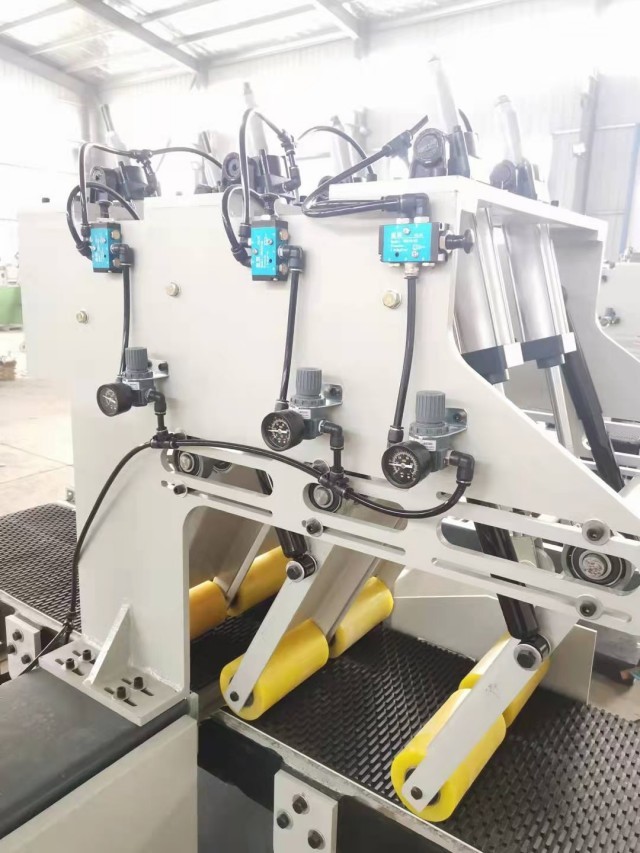

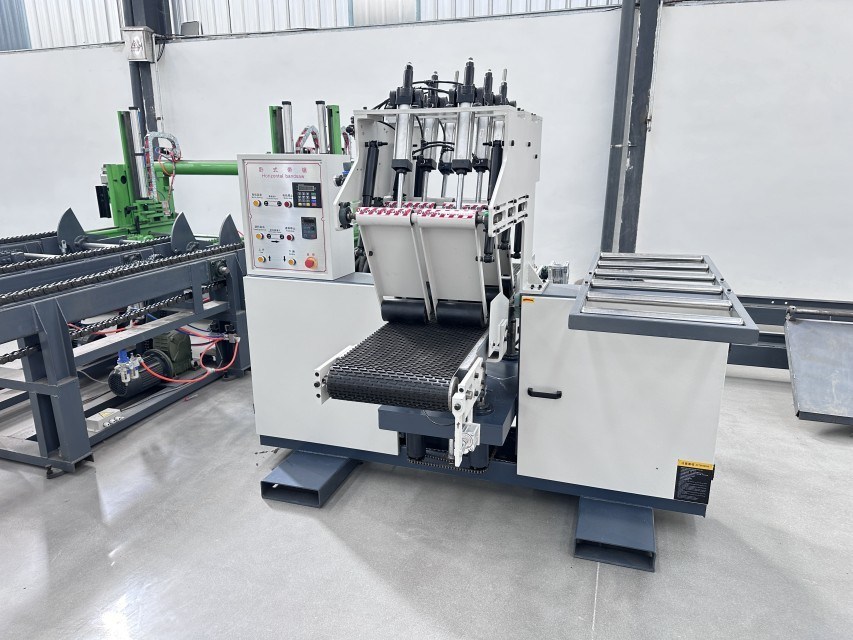

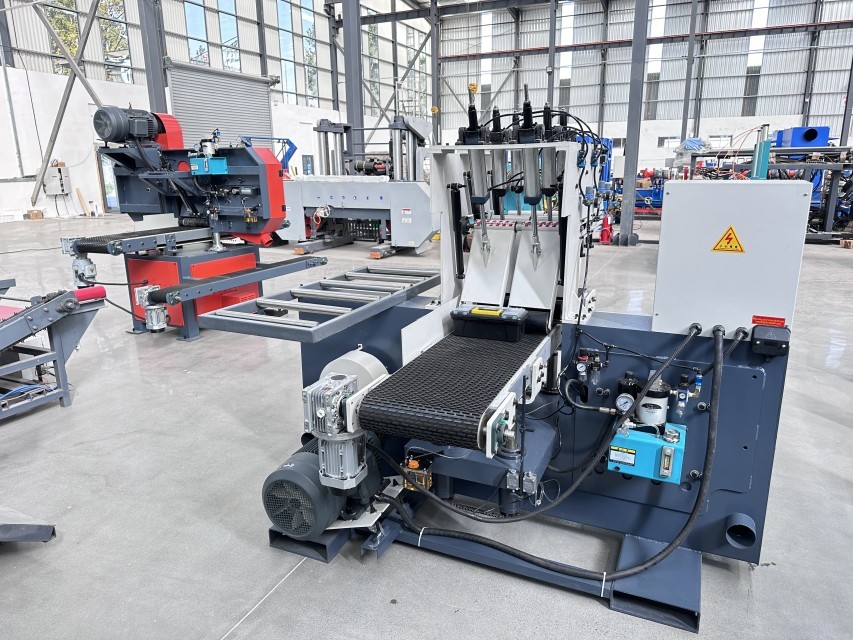

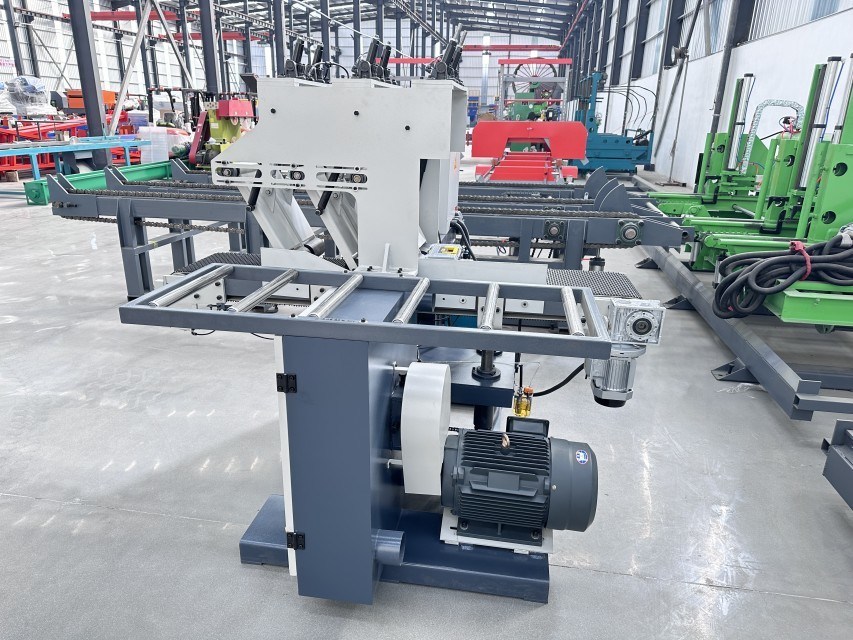

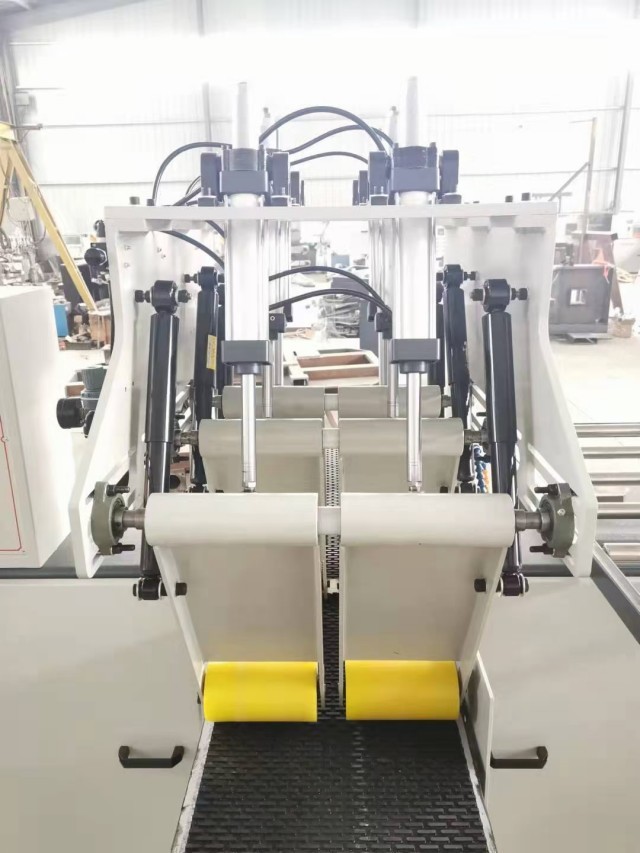

Detailed Images

Wood Cutting Band Sawmill Horizontal Precision Band ReSaw Bottom Cutting Saw Machine 0Wood Cutting Band Sawmill Horizontal Precision Band ReSaw Bottom Cutting Saw Machine 1Wood Cutting Band Sawmill Horizontal Precision Band ReSaw Bottom Cutting Saw Machine 2

Related Saw Machines

Precision Slice Horizontal Band Sawmill

Horizontal Resaw Band Saw Mills
Model SH350 SH650 SH800
Saw Wheel Diameter 710 mm 710 mm 710 mm
Maximum Cutting Width 350 mm 650 mm 800 mm
Maximum working Wood Height 200 mm 220 mm 220 mm

Max Sawing Height



100 mm 110 mm 110 mm

Min Sawing Thickness



2 mm 2mm 2mm
Feeding speed Variable Frequency Adjusted Speed
Main Electric Motor Power 15 KW 18.5 KW 18.5KW
Up/down motor 0.37kw 0.37kw 0.37kw
Feeding motor 1.1kw 1.1kw 1.5kw
Machine Weight 1000 KG 1200 KG 1400 KG


Is a Precision Resaw Bandsaw Right for You?

This machine is purpose-built for industrial production settings, cabinet shops, and specialized mills focused on high-volume, precision work. If your operations involve frequently breaking down thick stock or require the ability to produce thin, consistent slices of wood with a flawless finish, a precision resaw is an indispensable asset.
