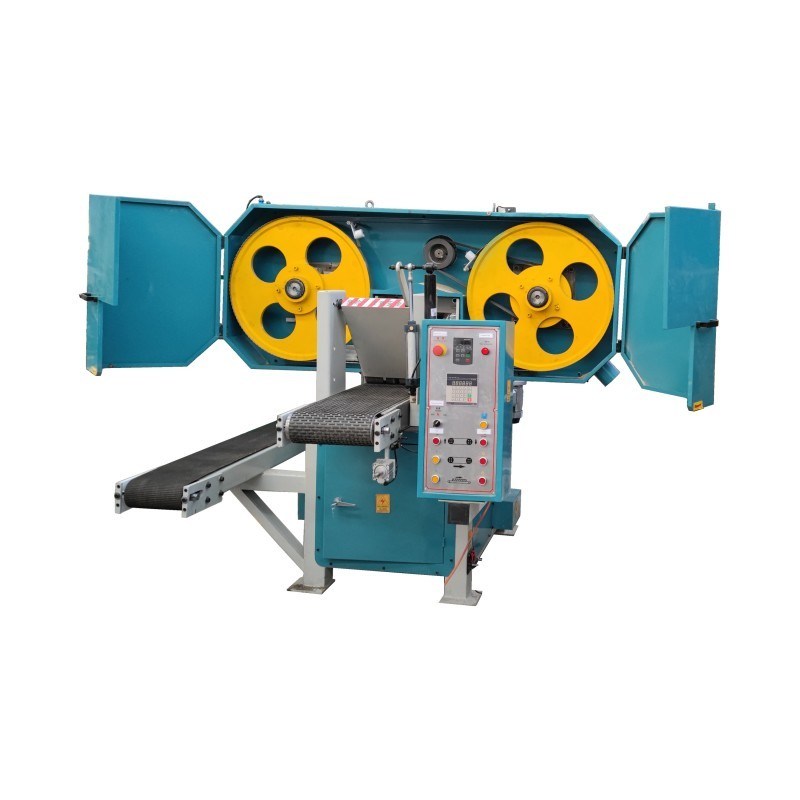

Wood Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with Inverter Feeding

Grundlegende Informationen
Herkunftsort: Provinz Shandong, China
Markenname: SH
Zertifizierung: ISO9001,CE
Modellnummer: SHJM350, SHJM650, SHJM800
Min Bestellmenge: 1 Set
Preis: US $7,500-13,950 / Set
Verpackung Informationen: Eisenrahmenverpackungs- oder -behälterladen
Lieferzeit: innerhalb von 15 Tagen
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Jahr
Detailinformationen
Name: Präzision resaw Bandsäge Zustand: Neu
Typ: Band sah Hauptmotorleistung: 15 kW, 18,5 kW, 22 kW
Fütterungsmotor: 1,1 kW, 1,5 kW Durchmesser der Säge: 700 mm
Max. Sägebreite: 800 mm Max. Verarbeitungshöhe: 220 mm
Fütterungsgeschwindigkeit: Inverter, Geschwindigkeit justierbar Garantie:: 1 Jahr
Nachverkaufsservice erbracht: On-line-Unterstützung, technische Videounterstützung, beauftragend und bildet aus
Hervorheben:

heavy duty horizontal resaw bandsaw

,

precision bandsaw machine with inverter

,

industrial wood saving bandsaw machine


Produkt-Beschreibung

Precision Resaw Bandsaw

Unlock Maximum Yield and Precision with an Industrial Precision Resaw Bandsaw

Beyond basic cutting, a precision resaw is an investment in productivity. Its core benefit lies in transforming challenging tasks—like salvaging expensive slabs or producing delicate veneers—into streamlined, repeatable processes. This is the definitive solution for professionals who require dependable performance day in and day out.

Key Benefits and Features at a Glance

  • High-Output Efficiency with Power Feeding

    • Benefit: Dramatically increase production rates and achieve a perfect surface finish by automating the feed process. A power feeder provides a consistent, steady feed rate, which is crucial for both operator safety and optimal precision resawing.

    • Features Behind the Benefit: Driven by a high-torque motor and often paired with a carbide-tipped blade, the saw maintains consistent speed and power through the thickest materials.

  • Maximize Material Value and Versatility

    • Benefit: Recover the highest possible value from expensive lumber by efficiently resawing slabs and cants into thinner, usable boards. The wide resaw capacity opens up opportunities for diverse projects.

    • Typical Applications: Ideal for producing lumber, custom veneers, wood siding, and salvaging valuable material from live-edge slabs.

Technical Specifications:

Horizontal Resaw Band Saw Mills
Model SH350 SH650 SH800
Saw Wheel Diameter 710 mm 710 mm 710 mm
Maximum Cutting Width 350 mm 650 mm 800 mm
Maximum working Wood Height 200 mm 220 mm 220 mm

Max Sawing Height



100 mm 110 mm 110 mm

Min Sawing Thickness



2 mm 2mm 2mm
Feeding speed Variable Frequency Adjusted Speed
Main Electric Motor Power 15 KW 18.5 KW 18.5KW
Up/down motor 0.37kw 0.37kw 0.37kw
Feeding motor 1.1kw 1.1kw 1.5kw
Machine Weight 1000 KG 1200 KG 1400 KG

Detailed Images

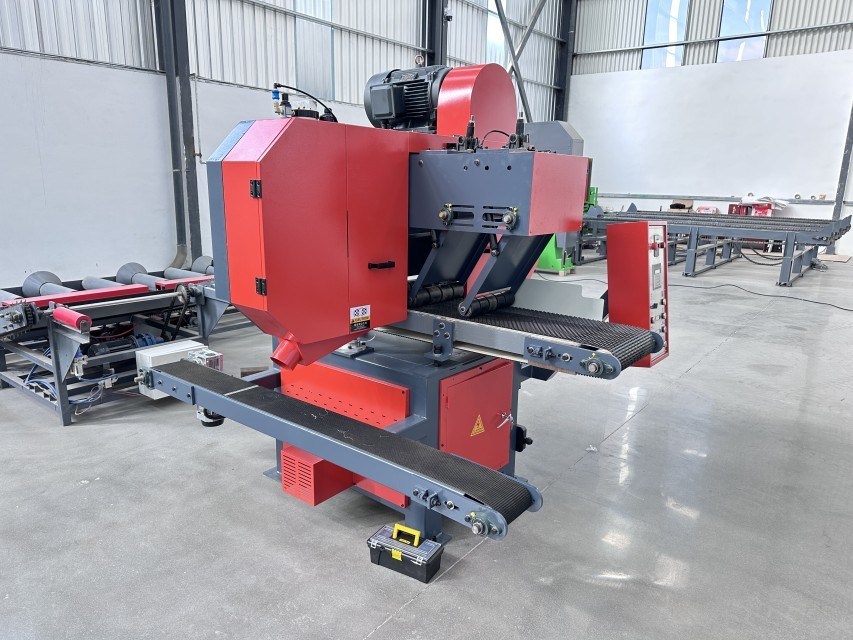

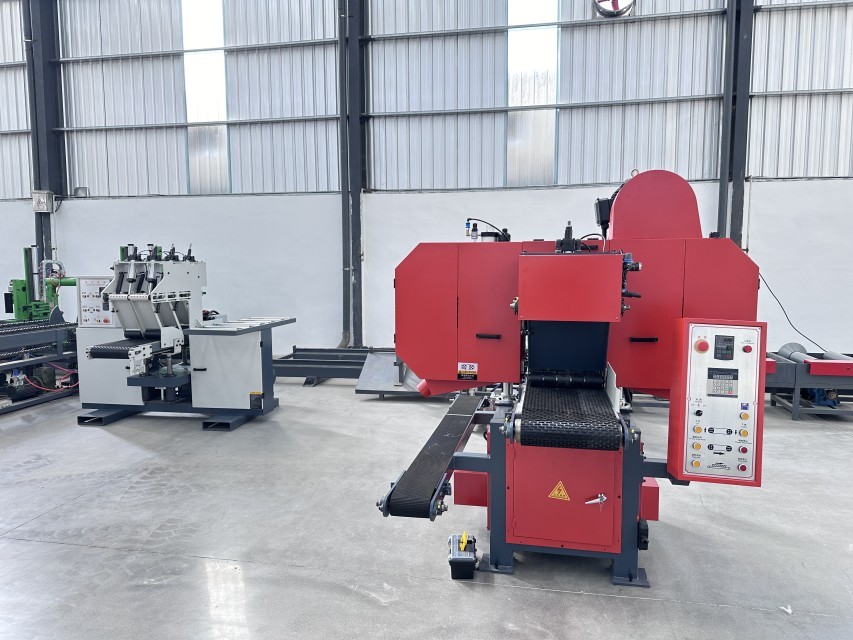

Wood Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with Inverter Feeding 0Wood Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with Inverter Feeding 1

Related Saw Machines

Precision Slice Horizontal Band Sawmill



Digital Control Sawing Thickness Setting
Model
SHJM-400



SHJM-650
SHJM-800
Saw Wheel Diameter



600MM

600MM
700MM
Max Sawing Wood Width

400MM

650MM
800MM
Max Sawing Height

110MM



Min Sawing Thickness



2MM



Feeding Speed



0.1-30 Meters/Minute



Motor Power

15KW




18.5KW




22KW



Feeding Motor


0.75KW


0.75KW

1.5KW

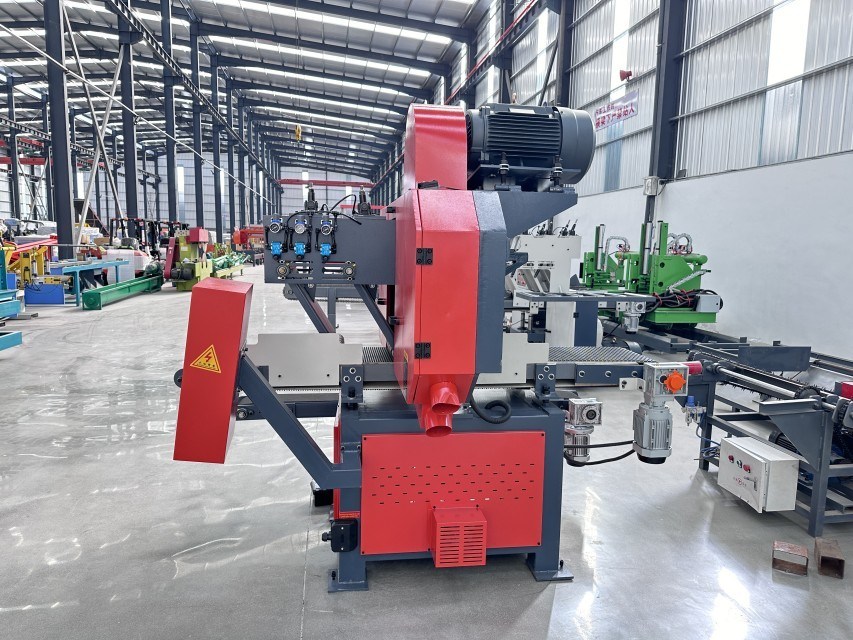

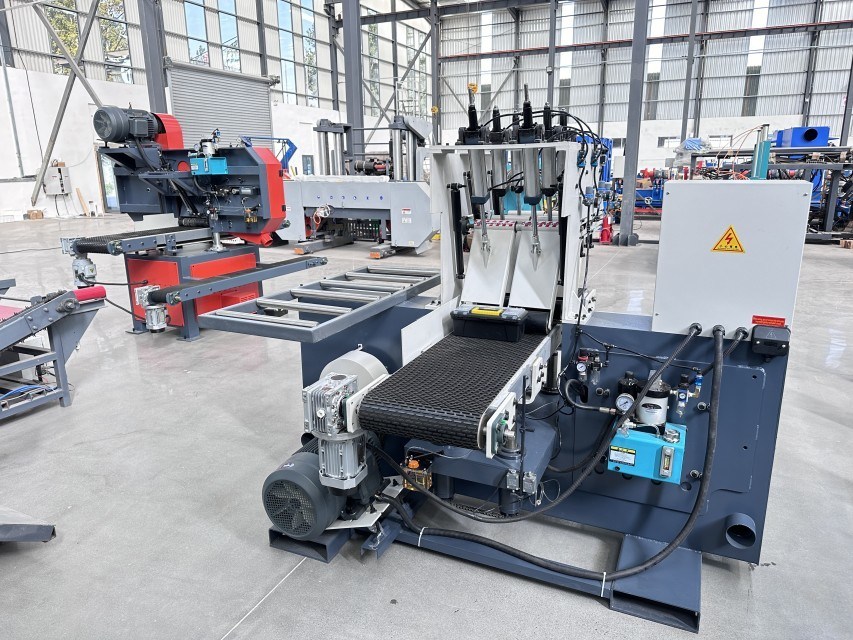

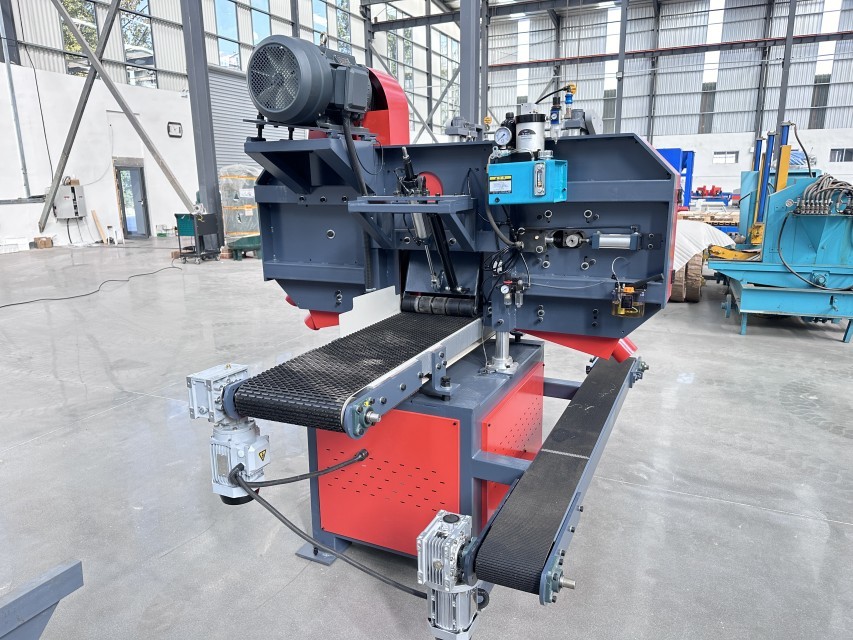

Wood Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with Inverter Feeding 2Wood Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with Inverter Feeding 3



Built to Last, Backed by Support

We stand behind the durability of our precision resaw bandsaws. Each machine is backed by a comprehensive warranty and supported by a dedicated service team, ensuring you have the parts and expertise you need to keep your production running smoothly.

Ready to transform your woodworking productivity? Contact our experts today to discuss your specific needs and find the perfect precision resaw bandsaw for your shop.
